Waterproof IP67 LED Driver Thin 24V 250W 10A Wall Light Led Module Power Supply
Quick Detail:
- Ultra thin body, U hook shape, All silence design, Pure copper wires
- AC/DC switching 24V 200W 8.3A single-switch LED driver
- 1600V High voltage test, full loading test and old aging test
- Application in LED light strip, light box, module, signboard light, line light, wall wash light, underground light, led tube and so on
- IP67 grade
- CE & RoHS, CCC approvals
- Unit Size: 21.0*6.5*2.5CM &
- Unit Weight: 850g
Description:
All these products adopt PWM high-frequency pulse width modulation technology, mature standardized production, strict 100% load-carrying aging, high and low voltage impact experiments and complete test records for development & production of LED driver through strictly quality control system and highly responsible attitude, thus have a good quality feedback during application.
Specifications:
| Series | Name | LED Driver |
| 1 | Basic info | 24V 10A 250W |
| 2 | Model | JL-250W-24V-WS |
| 3 | Material | Aluminum |
| 4 | Efficiency | 85% |
| 5 | Rated input | 220VAC 50/60Hz |
| 6 | Voltage Range | 100~220V |
| 7 | Output Voltage | DC24V±5% |
| 8 | Output Current | 10A |
| 9 | Output Power | 250W |
| 10 | Grade | IP67 |
| 12 | Protect | Shortage/Overload
Over voltage/Over current |
| 13 | Dimension | 21.0*6.5*2.5CM |
| 14 | Weight | 850g |
Related models list as below:
Waterproof series for line light, signboard light and lamp house:
| Series | Input Voltage | Output Value | Size/mm | Weight/g |
| 12V/24V | 100~220V | 20W | 182*30*20 | 200 |
| 12V/24V | 100~220V | 30W | 222*30*20 | 260 |
| 12V/24V | 100~220V | 40W | 222*30*20 | 260 |
| 12V/24V | 100~220V | 50W | 202*35*24 | 280 |
| 12V/24V | 100~220V | 60W | 202*35*24 | 280 |
| 12V/24V | 100~220V | 80W | 170*53*35 | 510 |
| 12V/24V | 220V | 100W | 182*62*20 | 360 |
| 12V/24V | 220V | 150W | 208*58*32 | 680 |
| 12V/24V | 220V | 200W | 238*58*32 | 810 |
| 12V/24V | 220V | 250W | 228*72*32 | 950 |
| 12V/24V | 220V | 300W | 228*72*32 | 950 |
| 12V/24V | 220V | 400W | 260*102*35 | 1820 |
| 12V/24V | 220V | 450W | 260*102*35 | 1900 |
| 12V/24V | 220V | 500W | 260*102*35 | 1900 |
| 12V/24V | 220V | 550W | 290*102*35 | 2200 |
| 12V/24V | 220V | 600W | 290*102*35 | 2200 |
Applications:
Widely used in LED Lighting, LED display, LED strips, LED advertisement screen, LED sign, LED night light, LED lamp house, LED decoration, LED wall light, LED street light , LED wall light, LED backlight, LED tube, offices , hospital , schools , factories , plants, shopping malls, supermarkets, kitchen, fair cabinet and so on.
|
|

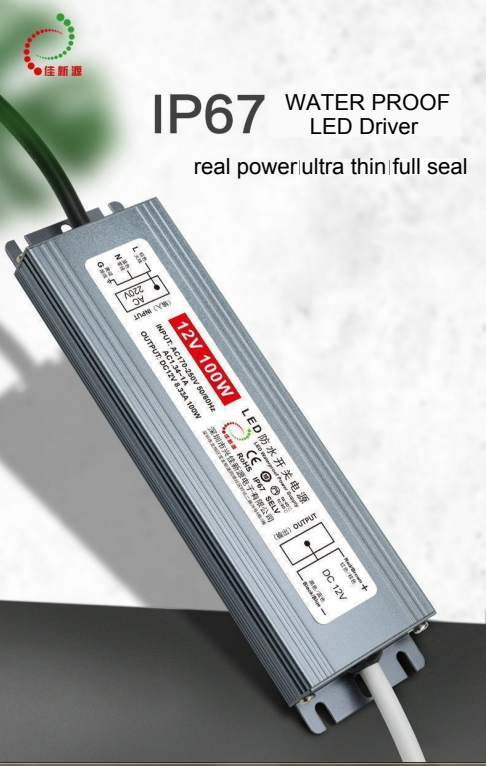

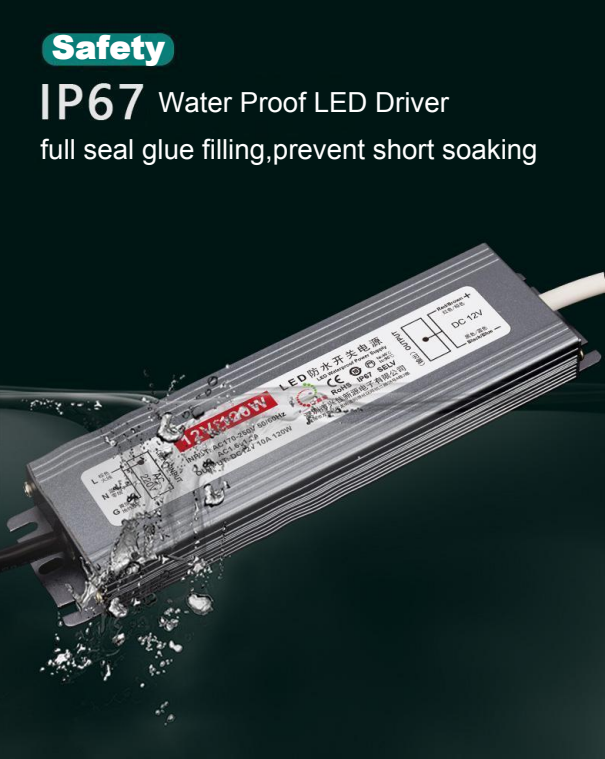

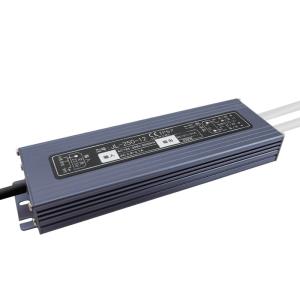

IP67 Wall Light 24 volt 250 watt power supply Thin 10A LED Driver Images
|
